PlasmaDyne Pro’s rotating head treats a wider area with atmospheric plasma functionalizing the surface for your application.

PlasmaDyne Pro

PlasmaDyne Industrial single rotating head

PlasmaDyne Pro 1000 with a rotating treating head for a broader treatment band. Numerous treating head options are available. Call us at  1-262-253-6700 to discuss your application.

The Power to Adhere

PlasmaDyne Pro fitted to a robotic arm

3DT’s PlasmaDyne Pro is capable of treating challenging part configurations with uniform coverage and ease. PlasmaDyne Pro easily handles high line speeds for improved adhesion of glue, coating, laminate, paint and ink on hard-to-bond materials.



Atmospheric Plasma Treatment –
Harnessing the fourth state of matter



We learn that solid, liquid and gas are the three states of matter. Less known, however, is the fourth state of matter, plasma energy, and it’s produced within 3DT’s PlasmaDyne Pro.

PlasmaDyne Pro obliterates adhesion challenges in manufacturing

Bonding problems are pervasive in manufacturing because many materials refuse to bond to other materials as a result of their chemical structure. PlasmaDyne Pro overcomes these manufacturing and decorating challenges.

3DT’s PlasmaDyne Pro generates atmospheric plasma to treat a wide variety of materials used in manufacturing. It is designed to improve the adhesion of ink, paint, and adhesives prior to decoration, coating or the joining of parts.  See it in action- watch the video to the right.

PlasmaDyne Pro produces a highly ionized plasma air stream (similar to lightning) that re-structures the chemical properties of material passed under its treating head. The invisibly altered surface is now capable of powerful bonding with another material. Some typical applications include: the improved adhesion of ink to plastic parts, adhering plastic tubing to medical devices and applying glue to automotive rubber seals prior to flocking.

3DT’s hardworking, classic atmospheric plasma treatment system, PlasmaDyne, has been thoroughly updated as a part of the company’s effort toward continual improvement. Updates include the newest in electrical engineering components and design.  Renamed PlasmaDyne Pro, the upgraded system features an optimized, sophisticated control unit, adjustable plasma treatment levels, energy efficiency, modular replacement parts, and it’s compact and economical.

PlasmaDyne Pro’s new features and benefits:

  • Adjustable power level up to 500W to achieve desired treatment levels- turn up the power to raise surface energy on resistant substrates or lower the power for delicate substrates.
  • Color touch display for monitoring all system parameters, including troubleshooting and fault log.
  • Modular power supply for treating heads allows for quick, easy changes to keep production running.
  • Active power correction for highest efficiency and lowest operating cost.
  • Compact and economical: PlasmaDyne Pro systems with 3 or more treating heads are now smaller than systems previously produced and more economical as a result.

View our Blog article about 3DT’s new PlasmaDyne Pro here from the developing engineer’s point of view.

Micro-clean and Activate Unresponsive Surfaces for Long-lasting Bonds

3DT’s PlasmaDyne Pro uses atmospheric plasma technology to treat a wide variety of surfaces such as plastics, rubber, glass, metals, paperboard and composites. Through this process, the atmospheric plasma (a highly ionized air stream) re-structures the chemical properties of the surface to create a powerful bond between the substrate and adhesives, coatings, laminates, paint, and ink. Plasma is also effective for cleaning surfaces by removing impurities, contaminants, residue, and organic compounds.

The Smart Technology Behind PlasmaDyne Pro-

PlasmaDyne Pro is designed with these unique features-

  • Plasma technology dramatically enhances bonding while eliminating inefficiencies, product damage.
  • State-of-the-art, solid-state microprocessor circuitry – for more precision and control than previously possible.
  • Treating heads are programmed to operate independently, providing the flexibility for numerous applications.

  • Standard self-contained units with one, two, four or eight treating heads include a compact, long-lasting welded and powder-coated steel cabinet and a control system, front door control panel, side remote connector, high voltage transformer(s), and air supply system for the treating head(s)
  • Fully customizable to meet your unique surface treatment application with up to 20 treating heads.
  • Equipped with flexible power treating range delivering a band of treatment from 3/8″ to 1/2 ” or expanded widths from 5/8″ , 1 1/2″, 2″ or up to 8″ with our rotating and or wide nozzle options.
  • A self-contained air supply system uses a DC, low voltage, self-monitoring air blower to avoid contamination from compressed air that occurs with other systems.
  • Low/high plasma treating level alarm to ensure consistent quality results. The system will stop if treatment is compromised.
  • Compact design easily integrates into new or existing production lines.

PlasmaDyne Pro Advantages for Your Bottom Line-

PlasmaDyne Pro is easy to use, cost-effective to operate, dependable and safe.

  • Ease integration and operation – Requires minimal space, is easily integrated onto a robotic arm or reciprocator and offers intuitive functionality for start to finish productivity.
  • Reduced downtime and maintenance – Combination of minimal elements, and state-of-the-art components means smoother operation and longer system life.
  • Designed for quick application changes – Easy programing and profile adjustments minimize downtime
  • Environmentally friendly – Eliminates the need for toxic primers and solvents and reduces VOC emissions. Facilitates the use of water-born or UV technology.
  • Workplace safe – Produces no ozone and eliminates the risk of high-voltage shocks and hazards of open flame or chemical treatments.

Cost-Saving Durability and Flexibility-

Traditional ceramic treating heads lack flexibility, mechanical strength and require higher maintenance. 3DT’s PlasmaDyne Pro’s treating heads are all metal, extremely durable and are securely connected to the transformer via flexible air and HV hoses. With a compactly designed treating head and an all-in-one utility tube, PlasmaDyne Pro requires minimal space and is easily integrated into single or multiple orifice lines.

That means low maintenance and uniform treatment of your conductive, semi-conductive and non-conductive areas. Designed for quick profile changes and product positioning, PlasmaDyne Pro minimizes downtime while producing consistent treatment.

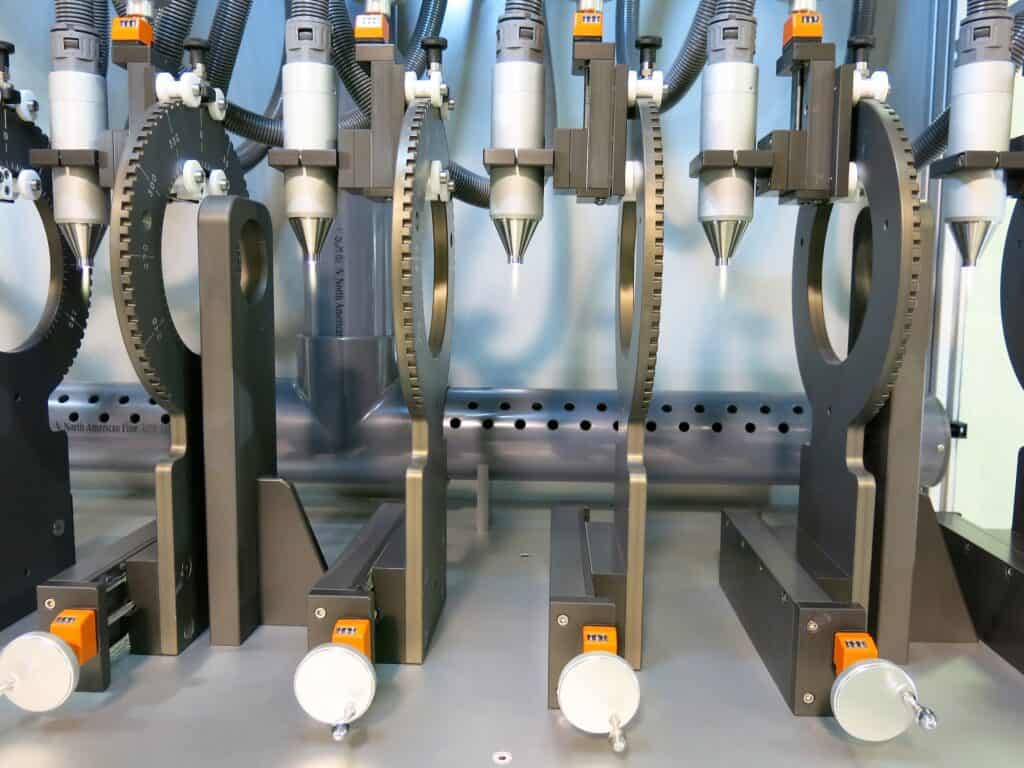

Custom PlasmaDyne Pro with multiple heads and precise adjustment. From 3DT.

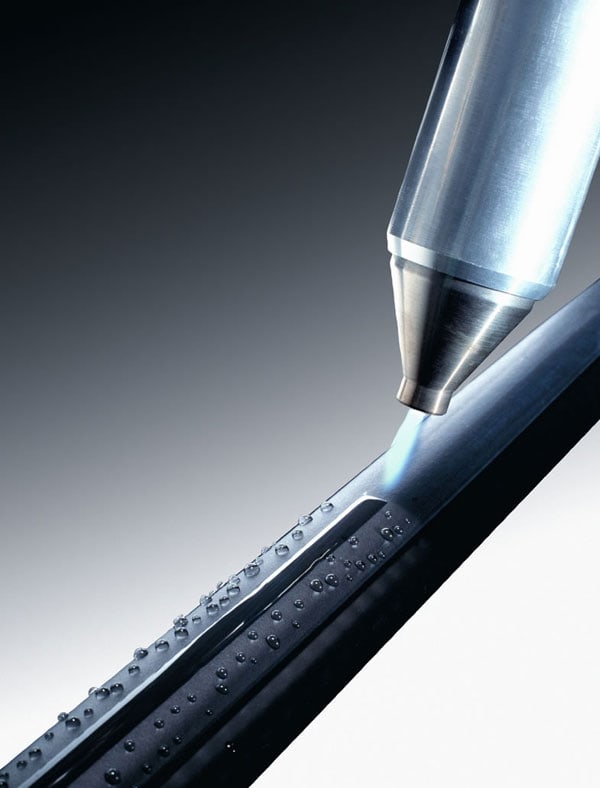

Plasma Dyne Nozzle

Videos:

3DT’s new plasma system, PlasmaDyne Pro, in action!

PlasmaDyne Pro’s stationary head treats a narrow groove with the help of a robotic arm.

PlasmaDyne Pro’s rotating head thoroughly treats 3D parts with atmospheric plasma. PlasmaDyne Pro’s guards have been removed for this product trial.

3DT’s PlasmaDyne Specialty Systems

Atmospheric Plasma System for Glue Lines

This super-sized PlasmaDyne Pro system is designed to accommodate the components of four plasma treating heads. Atmospheric plasma (a highly-ionized air stream) re-structures the chemical properties of the surface creating conditions for a secure bonding of glue lines to cardboard boxes.

PlasmaDyne Pro is well-suited for carton folding lines with each treating head programmed to operate independently. This feature provides flexibility for numerous glue line and carton applications. PlasmaDyne Pro is available with 1 – 4 heads depending on the number of glue linesIMG_4776 required.

This model is one of several PlasmaDyne Pro systems from 3DT designed to deliver highly effective surface treatment for both conductive and non-conductive applications. PlasmaDyne Pro meets many surface treatment needs such as improving adhesion for glue, coatings, laminates, paint, ink, and the cleaning of many substrates.

plasmadyne-glue-line-application-2







         Please email us at sales@3DTLLC.com or give us a call at   262-253-6700 for all the details.

photo-boxes-2-bw

.





plasmadynenozzel

PlasmaDyne Pro for the Treatment of Automotive Rubber Seals

This advanced plasma treatment system designed for the surface treatment of automotive rubber seals is a self-contained unit that easily integrates into extrusion lines. PlasmaDyne generates an in air or atmospheric plasma beam to uniformly treat rubber surfaces for powerful adhesion of ink, glue, coatings, and flocking on rubber and other substrates.

This system includes:

A rugged frame houses a generator, output transformers, electrode assemblies, electrode adjustment system, guiding system, system enclosure, air supply system, control panel, air conditioning system and control system.

 The PlasmaDyne Pro Advantage:

·         4-10 durable treating heads depending on the profile’s shape

·         Each head treats a 10-12 mm band

·         Precise, adjustable product handling brackets

·         Access door allows for easy, quick adjustment and cleaning

·         Local or remote control options

·         Superior reliability

 PlasmaDyne is designed for production lines and easy, recipe-based operation that yields high volume and consistent results.

Uniquely designed to easily treat extruded rubber products – even those with grooves, small cavities and other hard-to-reach areas. PlasmaDyne Pro allows you to work at line speeds up to 120 feet per minute providing consistent treatment even if the profile deviates from close proximity to the treating head. PlasmaDyne Pro improves productivity while producing the highest quality bonding.

For more information about 3DT’s PlasmaDyne Pro contact us at sales@3DTLLC.com.

 crw_7013

PlasmaDyne Pro Treating System for Activating Silicone Profilesedgetech-quanex-3

This atmospheric plasma system from 3DT is designed with 8 plasma treating heads to improve adhesion on three sides of a silicone profile.

PlasmaDyne Pro includes features that operators love, including local control or remote PLC control, fault monitoring, air conditioning, doors that open up and away for easy access to components and cleaning, a status light, and product guides with easy one hand operation for adjusting for material width.

Designed for production lines and recipe-based operation yielding high volume, consistent results. Contact 3DT for all the details at Sales@3DTLLC.com or 1-262-253-6700.



Long-lasting PlasmaDyne

3DT’s customers have come to appreciate PlasmaDyne for its highly effective surface treatment, flexibility in adapting to varied applications, thoughtful engineering and durability. In fact, there are numerous systems in the field with more than 25,000 hours of operation and they are still running strong.

3DT

Two stationary PlasmaDyne heads treat both sides of a rubber profile.Two stationary PlasmaDyne Pro heads treat both sides of a rubber profile.
